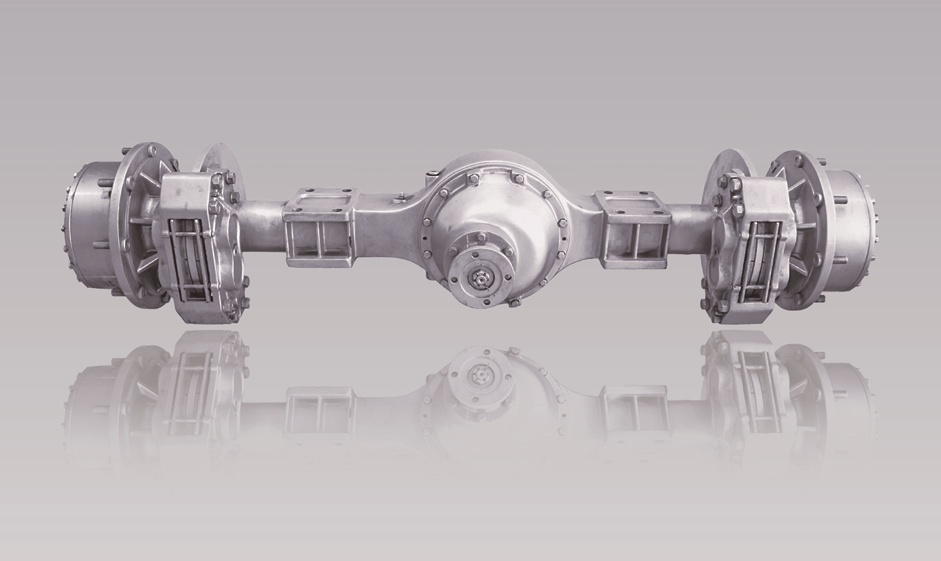

QWL25 Drive Axle

  • Two-stage decelerating structure is adopted for the drive axle.
  • Spiral bevel gears with great load-carrying capacity and high efficiency are adopted for main drive.
  • The wheel is planetary decelerating structure.
  • The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.
  • Cast steel with adequate rigidity serves as material for the axle housing.
  • The brake in clamp-disc braking mode has great braking moment.
  • Suitable for a 2.5 ton loader.

Require a quotation
Main Connection Dimensions
Technical Parameters
Main
transmission
ratio		Transmission
ratio
at wheel		Total
transmission
ratio		Axle
load		Input
torque		Clamp-disc brake
Number of
cylinders		Cylinder
diameter		Braking
oil pressure		Oil
inlet		Braking
radius		Braking
moment
4.875 /
5.875		4.421.45 /
25.77		13500Kg1700N.m4Ф75mm9.8MPaM12×1.25173mm9000N.m/pc
